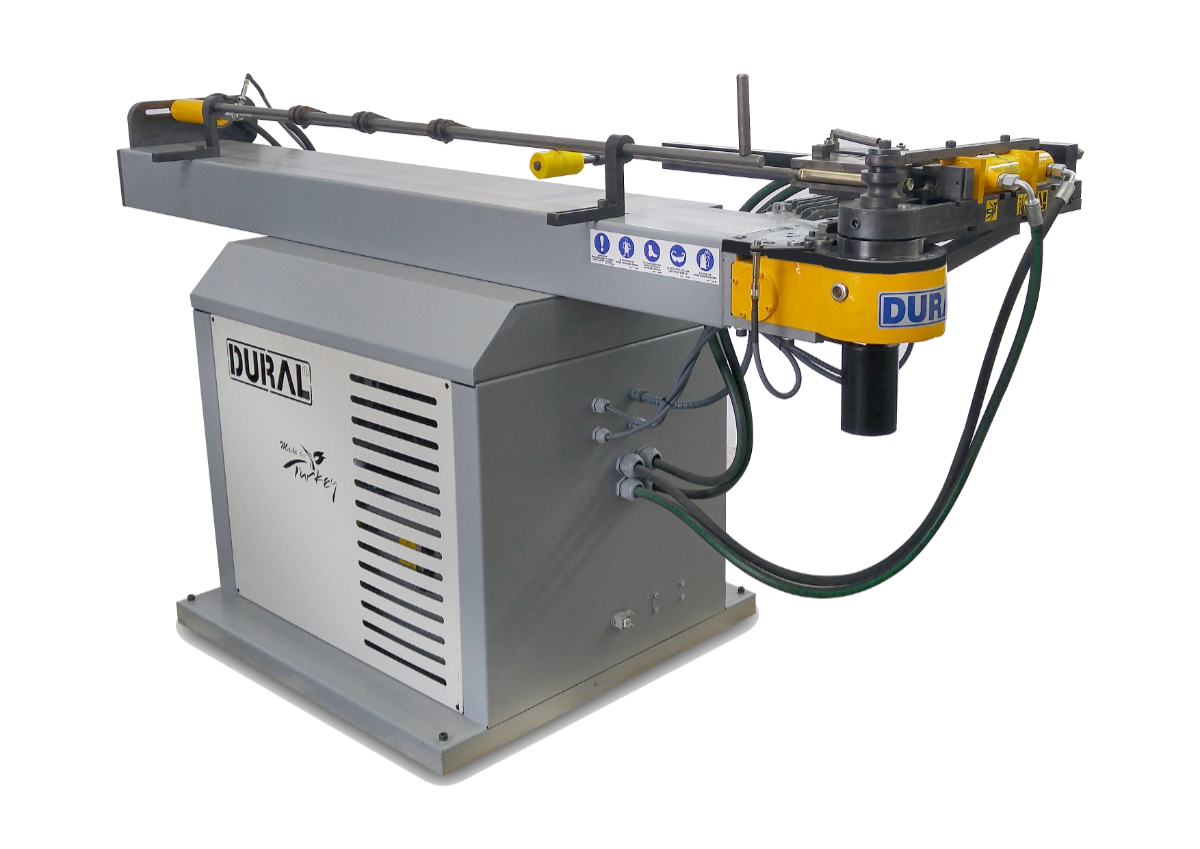

DMH-32-NC

Hybrid CNC tube bending – Single Tooling Stack – 1 CNC axis – Maximum tube outside diameter 32mm

Technical Specification

Name: Applied Tube Technology
Address: Eastern Wood Road, Plymouth, Devon, PL7 5ET, UK
Telephone: 01752 349920

Maximum Tube Diameter	Ø32 mm x 2 mm
Number of Electric Servo Axis	1
Number of Tooling Stacks	1
Machine Length	2380
Machine Width	670
Machine Height	1100
Machine Weight	425 kg
Electrical Power Consumption	5.2 Kw
Maximum Tube Length Over Mandrel	1910
Maximum Bend Centre Line Radius	250
